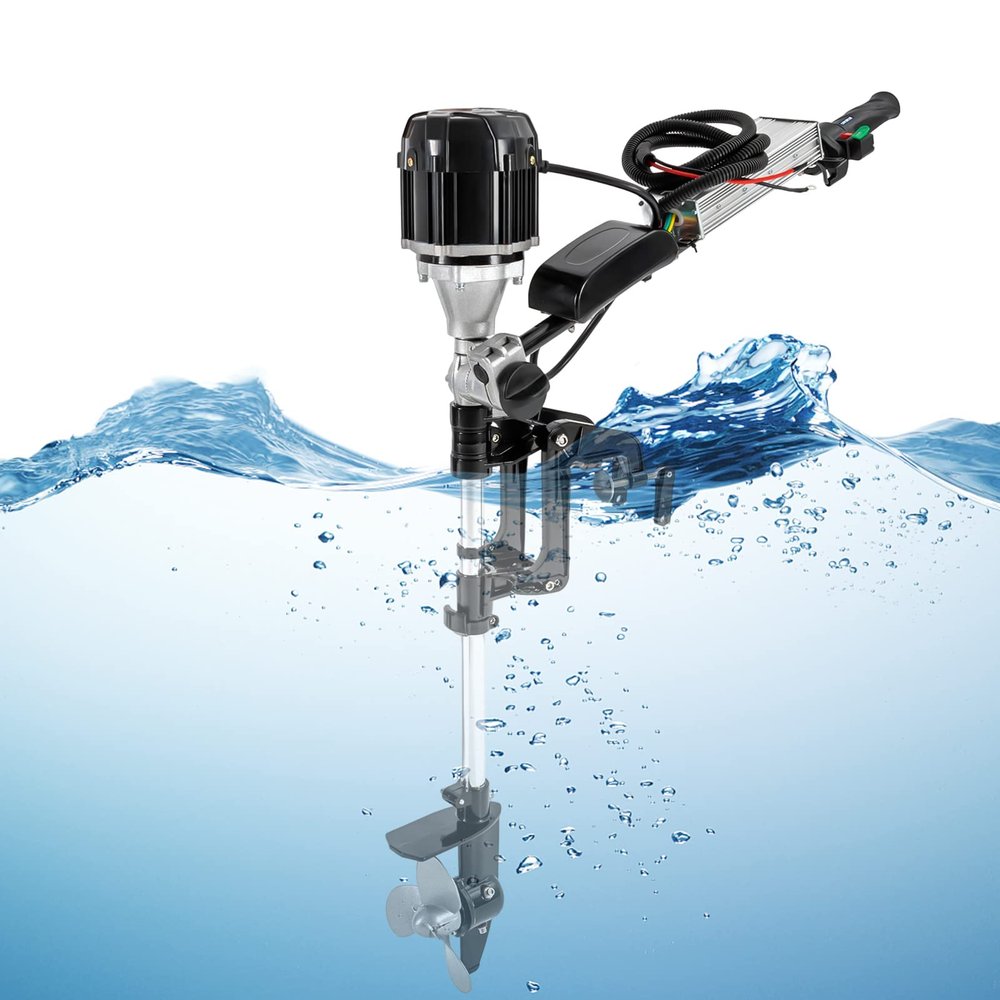

JooWing 1000W 5HP Electric Outboard Motor Fishing Boat Engine Brushless Trolling Start Marine Trolley Driver Propeller Steering Handle for 6.56-13.12ft Small Vessels

Description

• Adjustable Bracket: The bracket height of this electric outboard motor can be adjusted within the range of 20-50cm/ 7.87-19.69in and can be rotated 360 to facilitate multi-angle control.
• Multi-gear Cruise: This product has two gears for infinitely variable transmission: a reverse gear and a forward gear, and you can also cruise at a constant speed so that you can enjoy different cruise experiences according to your needs.
• Durable Material: This product is made of high-quality aluminum alloy, which is strong, durable, and not easy to deform. Due to its simple structure and complete accessories, you can easily install it on your boat and have a more comfortable sailing experience.
• Protective Shipping: In order to prevent it from being damaged and bumped during transportation, we fill the package with anti-collision protection foam to protect your products to the maximum extent possible.
• Eco-friendly: It is powered by electricity, unlike a gasoline tiller, electricity does not produce smoke which is harmless to the environment. And its brushless motor produces less wear and noise, creating a smoother user experience for you. The electric outboard motor with a 1000W motor with 4800rpm can provide strong power and 12km/h speed to give you a comfortable and labor-saving sailing experience.
• Easy to Operate: The manual start function allows you to operate easily by pulling the start rope and opening the speed switch on the handle. Its long non-slip handle(20 inches in length) is easy to grasp. The red stop button allows you to stop the engine by pressing it for a few seconds.

Description
This electric outboard motor is made of high-quality aluminum alloy material, which is the best choice for you to enjoy your cruise. All you need to do is install it in the stern of your boat, and you can enjoy a fast and easy-to-operate water journey!

Details
Clamping Device: We provide you with a clamping device so that you can easily adjust the position of the electric outboard motor according to the height of the tail of the hull, to ensure that it plays a greater role in propulsion.

Gearbox Screw: There is a screw on its gearbox. When you need to add gear oil, unscrew it to facilitate your use.

Ergonomic Handle: Its handle conforms to the ergonomic design, making it comfortable to hold. The gear button at the handle is designed to facilitate your operation.

Three-blade Propeller: Its propeller has three blades, and its streamlined design can provide you with more powerful power.

Heat Dissipation Holes: There are many heat dissipation holes on the engine, which can help the motor dissipate heat and prolong its service life.

Application
This electric outboard motor is suitable for small ships with different materials ranging from 2 to 4 meters (6.56-13.12ft), such as inflatable boats, iron boats, plastic boats, fiberglass boats, and wooden boats. It is widely used in fishery, aquaculture, outdoor exploration, etc.

Specification
Color: Black & Silver
Material: Aluminum Alloy
Voltage: 48V
Power: 1000W
HP: 5HP
Rotating Speed: 4800rpm
Driving Speed: 12km/h
Gear Ratio: 3:2
Starting System: Switch On
Tilt System: Manual Tilt
Operating System: Steering Handle
Power Display: Not Include
Gear Position: Infinitely Variable Speed (Reverse Gear, Forward Gear)
Cruise Control: Yes
Adjustable Height Range: 20-50cm/ 7.87-19.69in
Recommended Gear Oil: Hypoid Gear Oil SAE # 90 (Not Included)
Recommendation for Battery Models: 48V Battery (Not Included)
Number of Propeller Blades: 3
Applicable Ship Type: 2-4m/ 6.56-13.12ft Small Vessels
Propeller Diameter: 18cm/ 7.08in
Steering Handle Length: 73cm/ 28.74in
Length of Propeller End: 25cm/9.84in
Length of Connecting Rod: 60cm/23.62in
Top Length: 20cm/7.87in
Package Size: 108*32*30cm/ 42.5*12.6*11.81in
Net Weight: 11.5kg/ 25.35lbs
Gross Weight: 13kg/ 28.66lbs

Package Included
1* Electric Outboard Motor
1* Clamping Device
1* Storage Bag
1* Chinese User Manual
Other Needed Accessories

Notes
1.Please note that this product does not include batteries, please prepare before use.
2.When shifting, please step by step and do not accelerate suddenly, otherwise, the service life of the product will be affected.
3.Please note that the driving speed will change due to different ship types, loads, and natural conditions.
4.Please allow the slight color difference caused by the shooting light and 1-3 cm error due to manual measurement, and make sure you do not mind before ordering.
