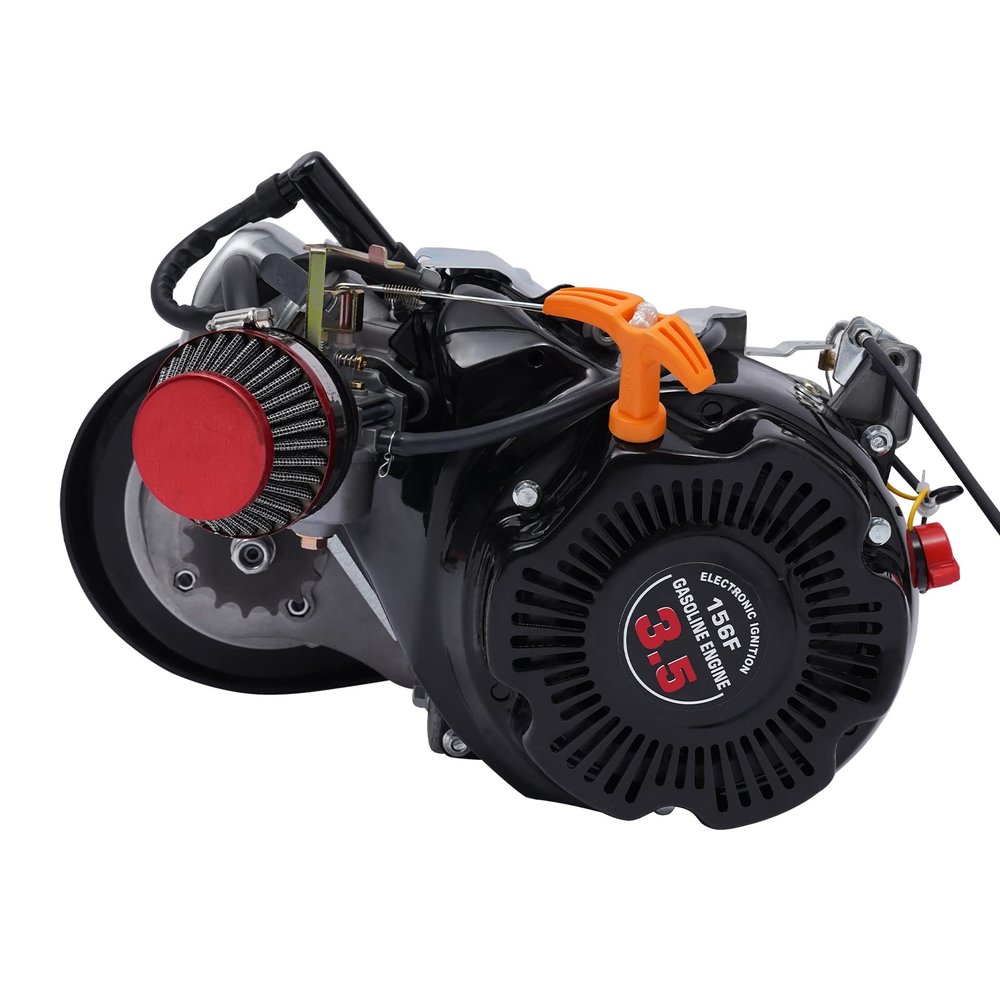

PIAOCAIYIN 100CC 4 Stroke Bicycle Engine Kit, 3HP Gas Motorized Engine, Recoil Start, OHV, Single-Cylinder, 3600rpm, Bicycle Modified Motor Kit for Beach Bikes -w/Belt

Description

• Product ParametersMaterial: Aluminum, Iron and Plastic, Model: EZ-156F, Type: Forced Air-cooled, 4-stroke, OHV, Single Cylinder, Tilt 25 Degree, Starting System: Recoil Starter, Maximum Output: 3HP; Rated Power: 2KW/3600rpm; Maximum Torque: 4.5N.m/2500rpm.
• Quality Material4 stroke bicycle engine kit is made of high quality premium aluminum, iron and plastic material. The overall structure is exquisite craftsmanship, which makes it has good hardness, wear resistance and durability.
• Excellent PerformanceThe bicycle engine kit runs on a powerful motor for strong performance. The four-stroke engine runs more consistently and quietly than a two-stroke engine.The 56mm bore cylinder increases bearing capacity, reduces operating temperatures, makes it easier to start, while providing continuous output over a range of speeds.
• Low Fuel Consumption100cc four-stroke gasoline engine is equipped with a large-capacity fuel tank and low fuel consumption. It can save economic expenses to a certain extent. Meanwhile it has good heat dissipation performance, runs efficiently and stably, and is sturdy and durable.
• ApplicationGas motorized bike kit converts your bike into an electric bike with a maximum speed of 3600 rpm. it can be widely used for beach bikes with large triangular frame space and so on, for you to fully enjoy the fun of riding in commuting and short distance travel.

Specifications
Model: EZ-156F
Type: Forced Air Cooling, 4-Stroke, OHV, Single-cylinder, Inclined by 25 Degrees
Starting System: Recoil Start
Material: Aluminum, Iron, and Plastic
Color: Black, Silver
Max Output: 3HP
Rated Power: 2KW/3600rpm
Max. Torque: 4.5N.m/2500rpm
Fuel Tank Capacity: 1.6L/0.42gal
Fuel Consumption: <420 g/KW.h
Oil Capacity: 0.4L/0.1gal
Oil Consumption: 6.8 g/KW.h
Min. Stable Speed Unloaded: 3600rpm
Reduction Ratio: 1:1
Bore x Stroke: 56x40 mm
Displacement: 100cc
Compression Ratio: 7:1
Product Size: 28.5*35*28cm/11.2*13.7*11in
Packing Size: 73*34*25cm/28.74*13.38*9.84in
Gross Weight: 21kg/46.29lbs
Net Weight: 20kg/44lbs

Fits (As a Reference)
For Beach Bikes with Large Triangular Frame Space

Package Included
1* 100cc 4-Stroke Gasoline Engine
1* Fuel Tank
1* Base Bracket
1* Exhaust Pipe
1* 44 Tooth Chain
1* Chain Tensioner
1* Belt
1* Guard
2* Fixed Iron Pieces
1* Spark Plug Tool
1* Fuel Line
1*Fuel Tank Cap
1* Exhaust Cushion
1* Fuel Filter
1*Fuel Valve
1*Belt Tension Adjusting Tool
1* English Manual
Other Mounting Accessories
